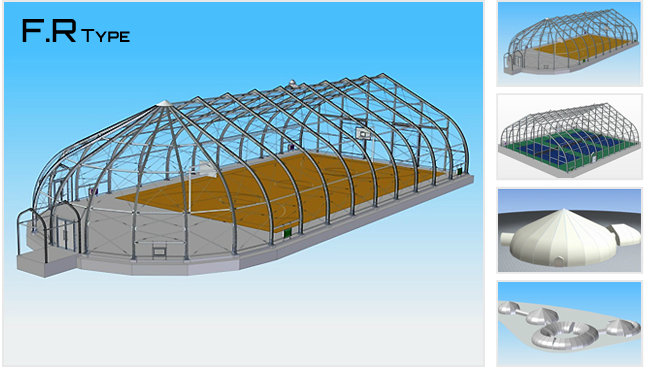

Herringbone assembled mobile membrane structure
|
|
|
|
|
|
|
|
|
|
fast
With construction and use, it is not necessary to dismantle, install 5000 square meters on the three day, and install 10 thousand square meters in five days.
|
|
Light body light
The all aluminum +PVC structure makes buildings less demanding for foundation and more convenient for transportation and storage.
|
|
elastic
The size of the space can be large and small, and the flexible modular structure can be telescopic and combined arbitrarily.
|
|
move
Standard assembly type building and modular components, the whole building can move with the heart.
|
|
Beautiful
The architecture is generous, solemn and flexible, and its architectural appearance expresses more architectural culture and architectural philosophy.
|
Scheme advantage：
1、Unit combination structure, can be built freely according to the size of the site or partition, no site requirements, a variety of specifications of free combination of 3-60 meters span for your choice;
2、You can rest assured that you can build a customized solution.
3、Low requirements: low basic requirements, no expensive concrete foundation.
4、Light transmittance: large span: large span, unimpeded interior space, providing large practical space;
5、The main frame is a high strength hollow aluminium alloy structure. The adjustable base can make up for the unevenness of the site. The high strength aluminium alloy profile (material 6061/T6) is used as the structural support.

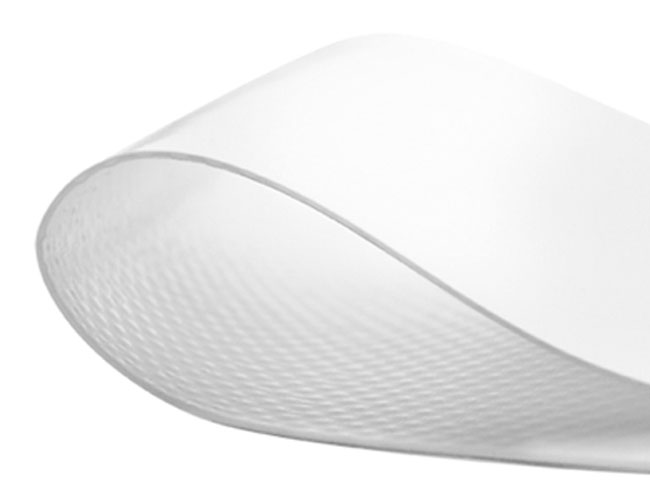

6、The top cloth is made of flame-retardant double-sided PVC or PVDF synthetic fiber membranes. It has excellent properties of wind resistance, waterproof, fire protection and ultraviolet protection. Its safety and reliability fully meet the standards of similar products in Germany.
7、It is very suitable for building all kinds of sports venues and large-scale comprehensive gymnasiums, and can also be used in airplane shed, large storage, celebrations and other purposes.
8、Beautiful economy: the structure is strong and durable, the building appearance is novel and beautiful, the quality price is suitable, the economic benefit is obvious.
9、Flexibility: resale, relocation and expansion of scale, with good long-term investment value.
10、The configuration of option purchase is more powerful and powerful. Such as: side wall cloth with transparent PVC windows, floor anchors, pillar bearing plate, Ceiling Interior decoration, glass curtain wall, glass door, ABS hard wall, transparent tent and side wall cloth, floor system, drainage tank.
|
span（m)
|
Edge height（m)
|
Top height（m)
|
Unit length（m)
|
Longest component
|
|
30m
|
4/6m
|
8.9-10.9m
|
5m
|
10.5
|
|
40m
|
4/6m
|
10.6-12.6m
|
5m
|
11.2
|
|
50m
|
4/6m
|
12.2-15.8m
|
5m
|
11.3
|
|
60m
|
4/6m
|
13.8-15.8m
|
5m
|
11.4
|
